PRODUCT DESCRIPTION

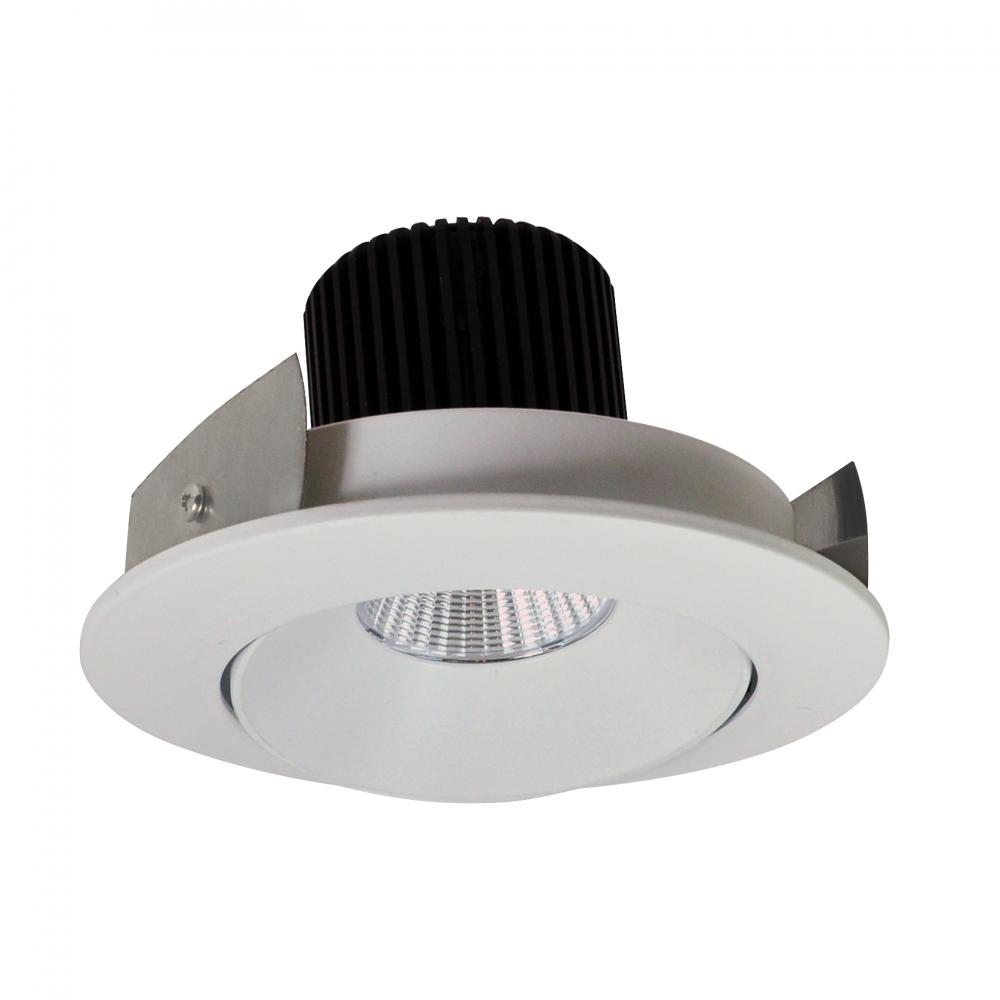

NSpec Lighting’s Iolite Series feature 4" square and round trims in a Regressed Gimbal and Regressed Cone
adjustable. The die cast aluminum trims feature sharp clean edges and can be aimed down for general lighting or
adjusted to highlight or wall wash a focal point. The Iolite ships with a 60° beam spread reflector installed. A 25°
and 38° reflector is also included and can be easily changed in the field. An Optional 15° reflector is available. The
system provides 800 lumen output, 14 Watts and 95CRI. An obvious choice for Green Energy Efficient lighting in
commercial and residential applications.
features
• 14 Watts
• Cree LED COB package
• 800 Lumens
• 96 CRI
• 2700K, 3000K, 4000K, 5000K, and Comfort Dim color temp.
• Ideal Connector
• 6" Cable with insulating sleeve
• 60° (Flood) reflector installed, 38° (Narrow flood) and 25° (Spot) reflector included.
• Adjustable square and round trims in Surface Gimbal, and Cone Regressed Gimbal, and Deep Regressed Style
• 15° (Narrow spot) reflector available
• 5-Year limited warranty
• cULus listed for Wet Location
• Dimmable

Product Availability

Finish:

CEC Substitute Item:

Additional options that would change other selections

CCT:

Additional options that would change other selections

Wattage:

Additional options that would change other selections

Additional Information

Info & Guides

Spec Sheet

Sales Sheet

Instruction Sheet

Technical Details

Details

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

White /vendors/vendorImages white.jpg

Style:

Traditional

Option:

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Finish:

White Reflector / White Flange

Category:

Recessed

Product Line:

LE46

Est. Shipping Wt.:

Lumens / Light Output:

800lm

Ship Carton Height:

3.5

Ship Carton Length:

Ship Carton Width:

CCT:

Comfort Dim (3100K-2000K)

CEC Database:

CEC Item Number:

NIO-4********

CEC Substitute Item:

NIO-4RC50XBW/10

Contains Battery:

Country of Origin:

CHN

CRI:

DLC Listed:

Master Box H:

Master Box L:

Master Box Qty:

Master Box W:

Master Box Wt.:

Product Family:

4" Iolite Dedicated Trim

Safety Listing:

cULus

Wattage:

14W
