PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with thermal
insulation. Rated for use with Iolite Series fixture
CONSTRUCTION
Housing
0.040" Aluminum shallow housing constructed of Aluminum with integral bar hangers
Air Flow Restriction
Meets requirments of Air tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM-
283 Air-Tight requirements.
Bar Hangers
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing.
Bar hangers are parallel to junction box, but can be repositioned 90º perpendicular to junction
box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar
notch allow for easy installation in a suspended ceiling.
Junction Box
Prewired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2" knockouts, four
Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is
connected to the bottom, and quick connectors are supplied on all leads. Through branch
circuit wiring, (4-in, 4-out). Access above ceiling required.

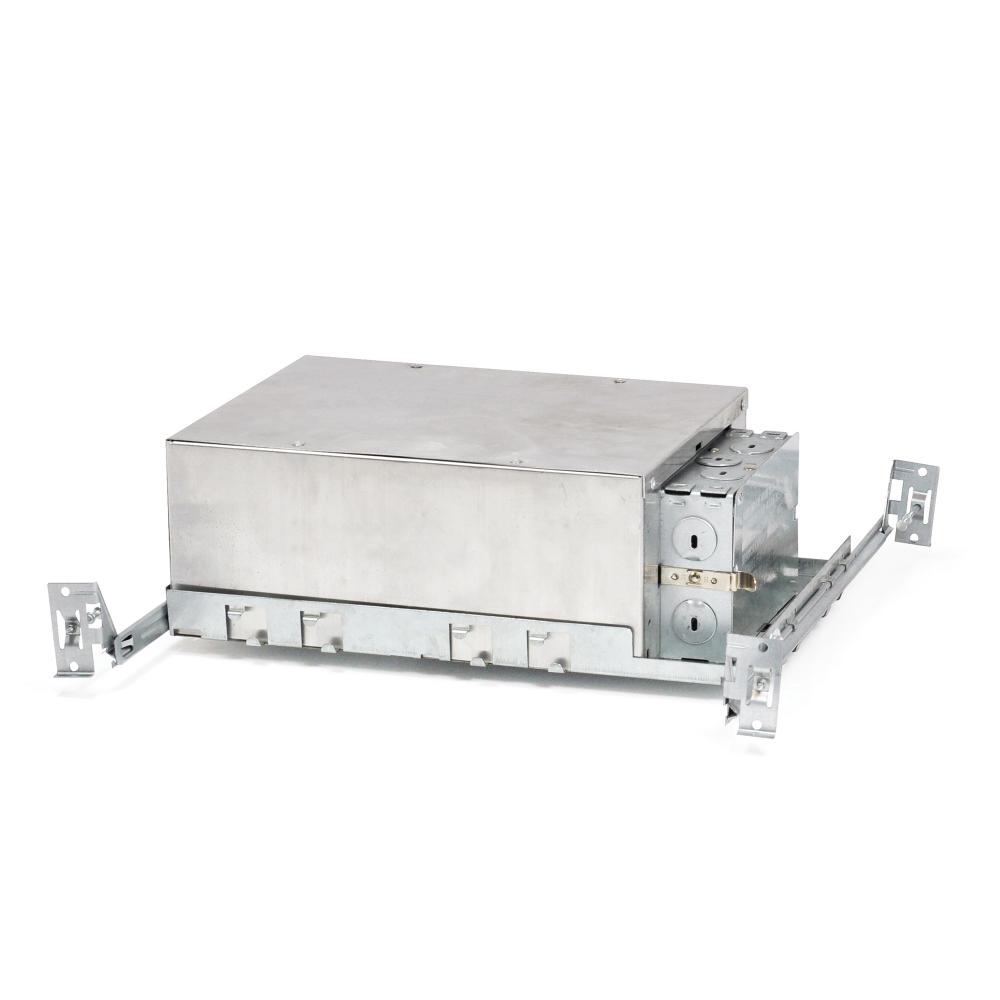

![2" Iolite LED Dedicated IC Air-Tight New Construction Housing, 13W, 120V input; Triac / ELV](/vendors/104/large/nhioicd_nhioicdcp.1.jpg "2" Iolite LED Dedicated IC Air-Tight New Construction Housing, 13W, 120V input; Triac / ELV")
