Item Sales Info
Part Number: A34P1 / Vendor ID Number: 81 / Custom:

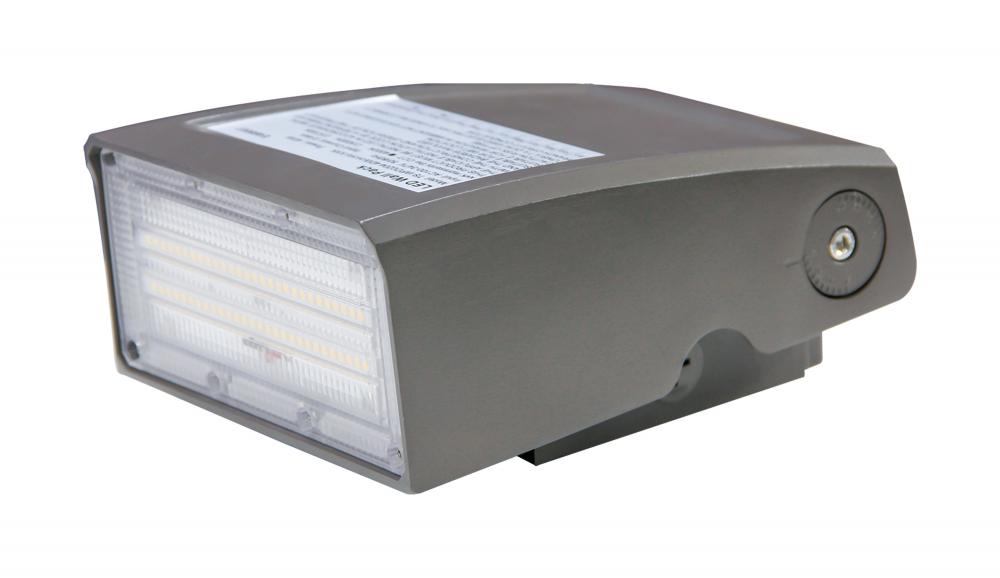

28 Watt Adjustable LED Wall Pack; CCT Selectable; 3360-3500 Lumens; DLC Premium

28 Watt Adjustable LED Wall Pack; CCT Selectable; 3360-3500 Lumens; DLC Premium

142
00
Pack Of: 1
307 In Stock
COGs: $71.00
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 8.08"
Width: 6.50"
Finish
Bronze
Product Overview
28 Watt Adjustable LED Wall Pack; CCT Selectable; 3360-3500 Lumens; DLC Premium
Product Availability
    Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Exterior
Sconces
Subcategory:
Wall Lights
Outdoor Wall Lights
Finish:
Bronze /vendors/vendorImages bronze.jpg
Style:
Traditional
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Lumens:
3300+
Kelvin:
4001-4500
Finish:
Bronze /vendors/vendorImages bronze.jpg
Category:
Wall Pack
Sub Category:
Standard
Style:
Utility
Additional Info:
Fixture head is adjustable 0-90 degrees from wall
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
6.3
Each Length:
10.43
Each Width:
8.47
Lumens:
3360L-3500L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.233-0.101A
ANSI Base:
Integrated
Beam Angle:
65x95
B_U_G_Rating:
B1-U2-G1
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80
Dark Sky Rated:
No
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
Outdoor Full-Cutoff Wall-Mounted Area Luminaires
Each Cube:
0.3221
Each Quantity:
1
Efficacy:
120.00/122.50/125.00 LPW
FCC Compliant:
Yes
Feature 1:
IP65 rating for all-weather durability
Feature 2:
90 degree adjustable head
Feature 3:
0-10V dimming
Feature 4:
Maintenance free
Feature 5:
Polycarbonate lens, die-cast aluminum body
Feature 6:
Operating temperature: -40C (-40F) to a maximum of 40C (104F)
Finish Family:
Bronze
Has Driver:
Yes
HID Equiv:
70W-100W
Incandescent Equivalent:
200W
Indoor Outdoor:
Outdoor
IP Rating:
IP65
JA8 Compliant:
No
Lens Material:
Impact Resistant PC
Long Description:
SATCO|NUVO's 65-677 rugged 28-watt Adjustable Wall pack features Color Quick selectable color temperature, along with advancements in design to minimize light trespass. The pack is DLC Premium certified, and delivers 50,000 hours of superior, energy-ef
Material:
Die-cast Aluminum
Mounting Procedure:
Wall
Operating Frequency:
50-60Hz
Operating Temp:
-40C (-40F) to +40C (+104F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
This rugged wall pack features Color Quick selectable color temperature, along with advancements in design to minimize light trespass. The pack is DLC Premium certified, and delivers 50,000 hours of superior, energy-efficient LED light.
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Short Description:
28W ADJUSTABLE WALL PACK
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
9.70%
Wattage Selectable:
No
Weight Lb.:
3.31
Wire Temp Rating:
105C (221F)
